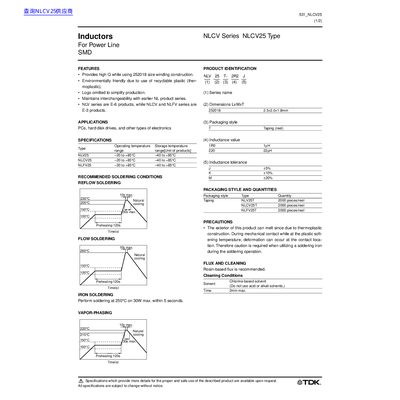

TDK NLCV25 Inductor Datasheet

About this manual

The NLCV25 series from TDK provides high‑Q SMD power line inductors in a 2520‑18 size, suitable for PCs, hard‑disk drives and other electronics. The series is environmentally friendly, using recyclable thermoplastic and maintains interchangeability with earlier NL series.

The datasheet lists electrical characteristics such as inductance values, tolerance, Q factor, self‑resonant frequency, DC resistance and rated current, as well as recommended soldering conditions (250 °C, 30 W, ≤5 s) and packaging details (tape, 2000 pieces per reel).

What's inside

• Features
• Applications
• Recommended Soldering Conditions
• Packaging Style and Quantities
• Precautions
• Electrical Characteristics

Specifications

Frequently asked questions

What are the recommended soldering conditions for the NLCV25 inductors?

Perform soldering at 250 °C on 30 W max within 5 seconds.

How are the NLCV25 inductors packaged?

They are supplied on tape, 2000 pieces per reel.
