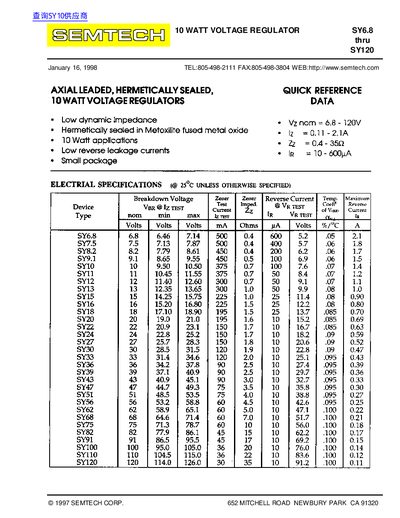

10 WATT VOLTAGE REGULATOR SY6.8 thru SY120
The SY6.8 through SY120 series are 10‑watt voltage regulators offered by Semtech. They feature axial‑lead, hermetically sealed packages and low dynamic impedance, making them suitable for a variety of low‑power applications. The datasheet provides the nominal voltage range, reverse leakage currents, and other key electrical parameters.
Detailed specifications include breakdown voltage, reverse current, operating and storage temperature limits, and dimensional data. Graphs illustrate maximum power versus lead temperature and typical junction capacitance versus reverse voltage, helping designers select the appropriate part for their circuits.
| Nominal Voltage (Vz nom) | 6.8 V – 120 V |
|---|---|
| Reverse Leakage Current (IR) | 10 µA – 600 µA |
| Operating Temperature Range | -195 °C to +175 °C |
| Storage Temperature Range | -195 °C to +175 °C |
| Package Type | Axial leaded, hermetically sealed |
The nominal voltage ranges from 6.8 V to 120 V.
The reverse leakage current (IR) is between 10 µA and 600 µA.
The devices operate from –195 °C to +175 °C.
They are axial‑lead, hermetically sealed devices.
