The document introduces the features and characteristics of the SC806 lithium battery charger produced by semtech. The charger adopts a fully integrated design, single cell lithium battery constant current/constant voltage charging, supports a variety of application scenarios, input voltage range 3V to 6V, and supports 0.1 microamps of discharge current, providing a variety of protection mechanisms

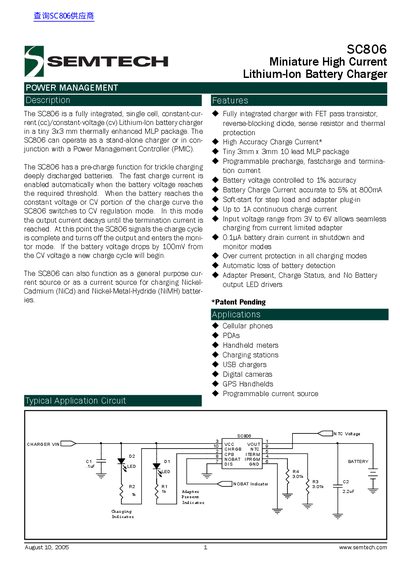

The SC806 is a miniature high current lithium-ion battery charger designed for use as a stand-alone unit or with a Power Management Controller (PMIC). It features a fully integrated design including an FET pass transistor, reverse-blocking diode, sense resistor, and thermal protection. The device supports programmable pre-charge, fast charge, and termination currents with high accuracy.
| Package Type | 3x3 mm 10 lead MLP package |
|---|---|
| Max Continuous Charge Current | Up to 1A |
| Input Voltage Range | 3V to 6V |
| Operating Ambient Temperature | -40 to +85 °C |
The device supports up to 1A continuous charge current.
It detects the absence of the battery by monitoring the voltage on the NTC pin; when the voltage exceeds 90% of VCC, it signals 'No Battery'.
Yes, it can function as a general purpose current source or for charging Nickel-Cadmium (NiCd) and Nickel-Metal-Hydride (NiMH) batteries.
