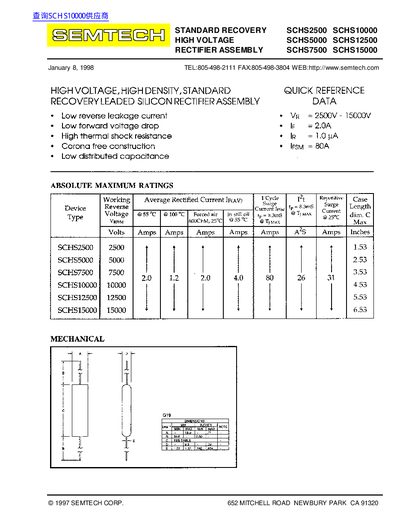

This document introduces the standard recovery high voltage rectifier assembly produced by SEMTech Corp., including models SCHS2500, SCHS10000, SCHS5000, SCHS12500, SCHS7500, and SCHS15000. These products are suitable for high voltage rectification applications and feature standard recovery characteristics.
The document details the specifications for a series of standard recovery and high voltage led silicon rectifier assemblies manufactured by Semtech. The product line includes models ranging from 2500V to 15000V, designed with low reverse leakage current and corona-free construction.
Key technical data provided includes absolute maximum ratings for average rectified current at various temperatures, electrical characteristics such as forward voltage drop and recovery time, and thermal resistance values. The datasheet also features graphical representations of forward current versus ambient temperature and capacitive load limits.
| Reverse Voltage (Vr) | 2500V - 15000V |
|---|---|
| Operating Temperature Range | -55 °C to +150 °C |
The device operates within a temperature range of -55 °C to +150 °C.
The rectifier assemblies have reverse voltages ranging from 2500V to 15000V.
