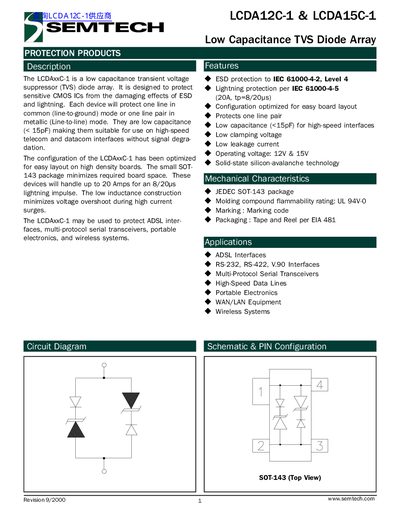

The LCDAxxC-1 series is a low capacitance transient voltage suppressor (TVS) diode array designed to protect sensitive CMOS ICs from the damaging effects of electrostatic discharge (ESD) and lightning. These devices are optimized for high-speed telecom and datacom interfaces, offering low capacitance (< 15pF) to prevent signal degradation while handling up to 20 Amps for an 8/20us lightning impulse. The configuration is optimized for easy layout on high-density boards using the small SOT-143 package.
| Peak Pulse Power (tp = 8/20us) | 500 Watts |
|---|---|
| Peak Pulse Current (tp = 8/20us) | 20 A |
| Operating Temperature | -55 to +125 °C |
| Reverse Stand-Off Voltage (LCDA12C-1) | 12 V |
| Reverse Stand-Off Voltage (LCDA15C-1) | 15 V |
| Package Type | SOT-143 |
It is designed to protect sensitive CMOS ICs from the damaging effects of ESD and lightning.
The devices have a low capacitance of less than 15pF.
These devices will handle up to 20 Amps for an 8/20us lightning impulse.
