superfast recovery doubler and center taps

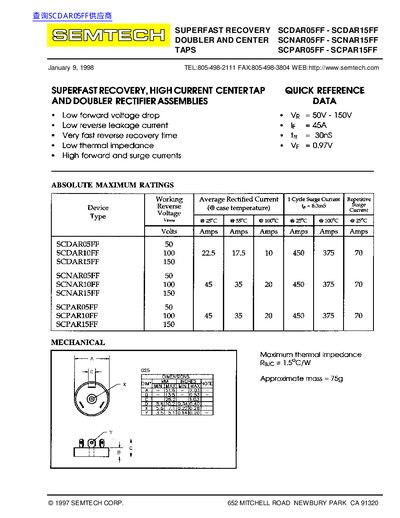

This document is a technical datasheet from Semtech Corporation detailing the specifications of their Superfast Recovery, High Current Center Tap and Doubler Rectifier Assemblies. The product family includes models SCDAR05FF through SCDAR15FF for center tap applications and SCPAR05FF through SCPAR15FF for doubler configurations.
The datasheet provides absolute maximum ratings such as working average rectified current, one-cycle surge current, and repetitive peak reverse voltage. It also lists electrical characteristics including forward voltage drop, reverse leakage current, and reverse recovery time, along with operating temperature ranges from -55°C to +150°C.
| Reverse Recovery Time (tr) | 30nS |
|---|---|
| Operating Temperature Range | -55°C to +150°C |
| Maximum Thermal Impedance (Rac) | 1.5°C/W |
The datasheet specifies a very fast reverse recovery time of 30nS.
These assemblies operate within a range of -55°C to +150°C.
