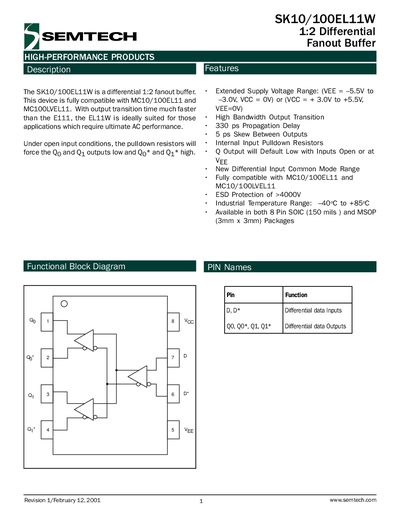

SK10/100EL11W is a differential 1:2 fanout buffer. This device is fully compatible with MC10/100EL11 and MC100LVEL11. With output transition time much faster than the E111, the EL11W is ideally suited for those applications which require ultimate AC performance.
The SK10/100EL11W is a differential 1:2 fanout buffer designed for applications requiring ultimate AC performance. It is fully compatible with MC10/100EL11 and MC100LVEL11 devices, offering a propagation delay of 330 ps and 5 ps skew between outputs. The device features internal input pulldown resistors and ESD protection greater than 4000V.
| Propagation Delay | 330 ps |
|---|---|
| Output Skew | 5 ps |
| ESD Protection | >4000V |
| Temperature Range | -40°C to +85°C |
| Supply Voltage | 3.0V to 5.5V |
The SK10/100EL11W is a differential 1:2 fanout buffer that is ideally suited for applications requiring ultimate AC performance.
The device operates within an industrial temperature range of -40°C to +85°C.
The maximum skew between the outputs is 5 ps.
