This document is about standard recovery high voltage, high current rectifiers S4KW4KA-1, S4KW8KA-2, S4KW12KA-3, S4KW16KA-4, S4KW20KA-5, S4KW24KA-6

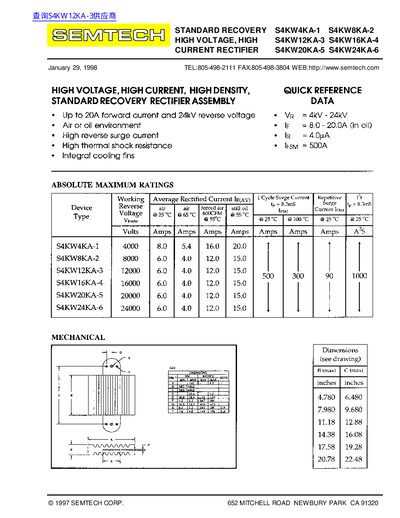

This document is a technical datasheet for the Semtech Standard Recovery Rectifier Assembly series. It covers six specific device types: S4KW4KA-1 through S4KW24KA-6, designed for high voltage and high current applications in air or oil environments.
The datasheet provides absolute maximum ratings, electrical characteristics such as leakage current and reverse recovery time, and operating temperature ranges from -55°C to +150°C. It also includes mechanical dimensions and a graph illustrating the forward voltage drop as a function of forward current.
| Average Rectified Current (Ircav) | 8.0A to 20.0A |
|---|
The devices operate from -55 °C to +150 °C.
The devices are rated for a reverse voltage ranging from 4,000 Volts to 24,000 Volts depending on the specific model.
The device operates within a temperature range of -55 °C to +150 °C.
