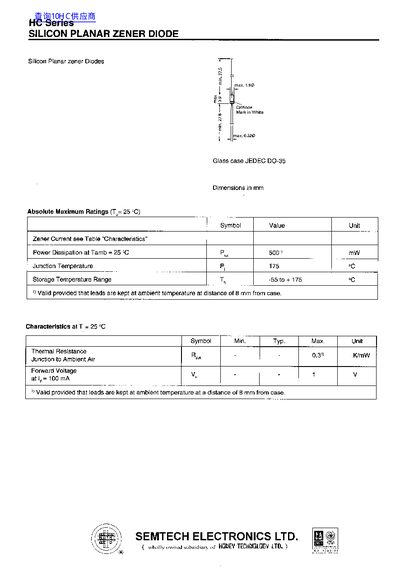

The HC series silicon planar Zener diodes from Semtech are offered in a DO‑35 glass package and cover a wide range of Zener voltages from 2.2 V up to 35 V. Each part is rated for a maximum power dissipation of 0.5 W and is designed for operation at ambient temperature.
The datasheet provides absolute maximum ratings, detailed electrical characteristics such as Zener voltage, dynamic resistance, reverse leakage current, and thermal resistance. All values are measured at a junction temperature of 25 °C, and the parts are qualified for storage from –55 °C to +175 °C.
| Maximum Power Dissipation | 0.5 W |
|---|---|
| Maximum Junction Temperature | 175 °C |
| Storage Temperature Range | -55 °C to +175 °C |
| Package | DO‑35 glass case |
| Zener Voltage (example 2.2 V part) | 2.09 V – 2.41 V |
Each HC series Zener diode can dissipate up to 0.5 W at a 25 °C ambient temperature.
The diodes are rated for storage temperatures from –55 °C to +175 °C.
They are supplied in a JEDEC DO‑35 glass case package.
