The datasheet provides the characteristics of MM3Z2B4, such as power dissipation, maximum working temperature, maximum reverse leakage current, dynamic resistance, etc.

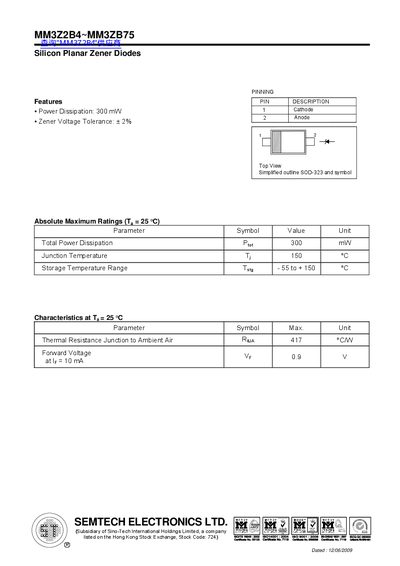

This document is a technical datasheet for the Semtech MM3Z2B4~MM3ZB75 series of Silicon Planar Zener Diodes. The components are designed with a total power dissipation capability of 300 mW and utilize a plastic surface-mounted SOD-323 package.
The document provides absolute maximum ratings, including a junction temperature limit of 150 °C and a storage temperature range from -55 to +150 °C. It also lists specific electrical characteristics for various Zener voltage options ranging from 2.4V to 76.5V.
| Power Dissipation | 300 mW |
|---|---|
| Junction Temperature | 150 °C |
| Storage Temperature Range | -55 to +150 °C |
| Thermal Resistance Junction to Ambient | 17 °C/W |
| Package Type | SOD-323 |
The total power dissipation (Prot) is rated at 300 mW.
The absolute maximum junction temperature (Tj) is 150 °C.
