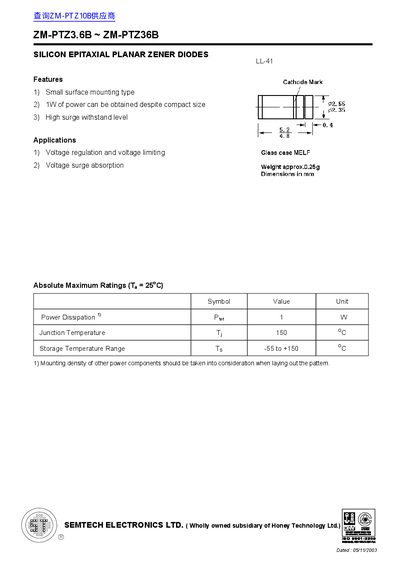

This document is the datasheet of ZM-PTZ3.6B ~ ZM-PTZ36B SILICON EPITAXIAL PLANAR ZENER DIODES LL-41. This product is a small surface mounting type diode with 1W power and high surge withstand level. It is mainly used for voltage regulation, voltage limiting and voltage surge absorption.
The document provides technical details for a range of small surface mounting type 1W power zener diodes. Key features include high surge withstand levels and compact glass case MELF packaging suitable for voltage regulation, limiting, and surge absorption applications.
Detailed electrical parameters are listed for various models ranging from ZM-PTZ3.6B to ZM-PTZ36B, specifying zener voltage ranges, operating resistance, and reverse current limits. The datasheet also includes absolute maximum ratings and derating curves based on substrate type and mounting quantity.
| Power Dissipation | 1W |
|---|---|
| Junction Temperature (Tj) | 150 °C |
| Storage Temperature Range | -55 to +150 °C |
The absolute maximum power dissipation rating is 4 W.
Each part weighs approximately 0.25g.
The maximum junction temperature is 150 °C.
