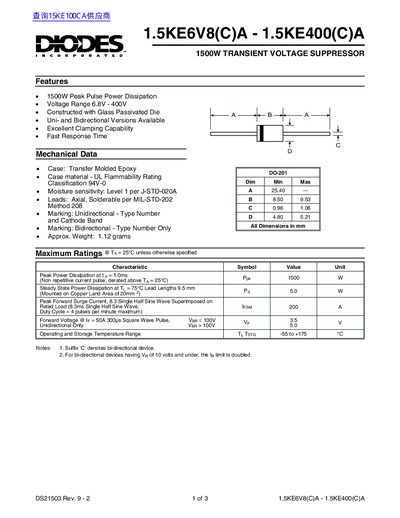

1.5KE6V8(C)A - 1.5KE400(C)A 1500W TRANSIENT VOLTAGE SUPPRESSOR
The 1.5KE series are 1500 W peak pulse power transient voltage suppressors available in unidirectional and bidirectional versions. They feature a glass‑passivated die, fast response time and excellent clamping capability across a voltage range of 6.8 V to 400 V.
The document lists maximum ratings, mechanical dimensions, and derating curves. Key parameters include a peak power dissipation of 1500 W, operating temperature from –55 °C to +175 °C, and a typical lead length of 9.5 mm. Graphs illustrate pulse waveforms, pulse rating, pulse derating, and steady‑state power derating.
| Voltage Range | 6.8 V – 400 V |
|---|---|
| Case Material | Transfer Molded Epoxy |
| Moisture Sensitivity Level | Level 1 (J‑STD‑020A) |
| Approximate Weight | 1.12 g |
| Operating Temperature Range | -55 °C to +175 °C |
The suffix “C” denotes a bi‑directional device.
It is classified as Moisture Sensitivity Level 1 according to J‑STD‑020A.
