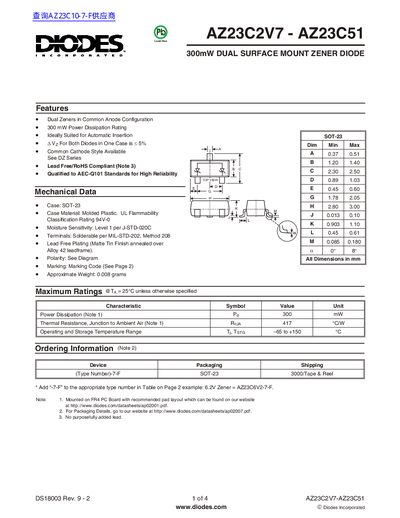

AZ23C2V7-AZ23C51 300mW DUAL SURFACE MOUNT ZENER DIODE is a dual zener diode produced by Diodes Incorporated with a power dissipation rating of 300mW. It has a common anode configuration, a 5% error, and is lead free and RoHS compliant.
The AZ23C2V7‑AZ23C51 series are 300 mW dual surface‑mount Zener diodes offered in a SOT‑23 package. They feature a common‑anode configuration, lead‑free / RoHS compliance, and are qualified to AEC‑Q101 for high reliability.
The datasheet provides detailed electrical characteristics, mechanical dimensions, marking codes, and packaging information. It also includes power‑derating curves, temperature ranges, and maximum ratings for each Zener voltage variant.
| Power Dissipation | 300 mW |
|---|---|
| Operating Temperature Range | -65 °C to +150 °C |
| Package Type | SOT‑23 |
Each diode is rated for 300 mW of power dissipation.
They are specified for operation from –65 °C up to +150 °C.
The diodes are supplied in a SOT‑23 surface‑mount package.
The AZ23C7V5 variant has a Zener voltage range of 7.0 V to 7.9 V.
