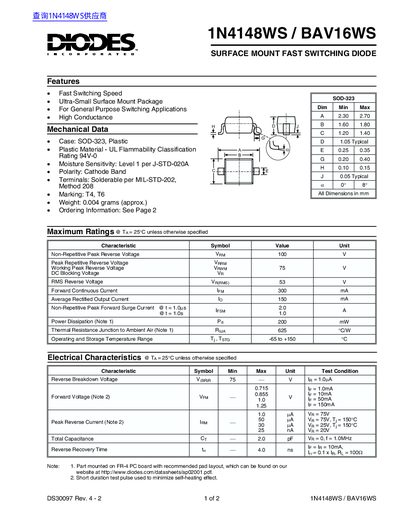

1N4148WS / BAV16WS is a surface mount fast switching diode with the following features: plastic case, UL flammability classification rating 94V-0, moisture sensitivity level 1 per J-STD-020A, cathode band, solderable terminals, MIL-STD-202 method 208 marking, weight approximately 0.004 grams, and ordering information is on page 2.
The 1N4148WS and BAV16WS are ultra‑small SOD‑323 surface‑mount fast switching diodes intended for general‑purpose switching applications. They feature a low forward voltage, high reverse voltage capability, and a moisture‑sensitivity level 1 rating.
The document lists maximum ratings such as a 100 V non‑repetitive peak reverse voltage, 300 mA forward continuous current, and a 4 ns reverse recovery time. Ordering information, package details, and characteristic curves are provided on the second page.
| Non‑Repetitive Peak Reverse Voltage (VEM) | 100 V |
|---|---|
| Forward Continuous Current (IFAV) | 300 mA |
| Average Rectified Output Current (IO) | 150 mA |
| Reverse Recovery Time (trr) | 4.0 ns |
| Package | SOD‑323 |
| Weight | 0.004 g (approx.) |
The diode can withstand a non‑repetitive peak reverse voltage of 100 V.
The forward continuous current rating is 300 mA.
It is supplied in an SOD‑323 surface‑mount package.
Ordering information is on page 2 and lists the part as 1N4148WS‑7/BAV16WS‑7 in SOD‑323, 3000 per tape & reel.
