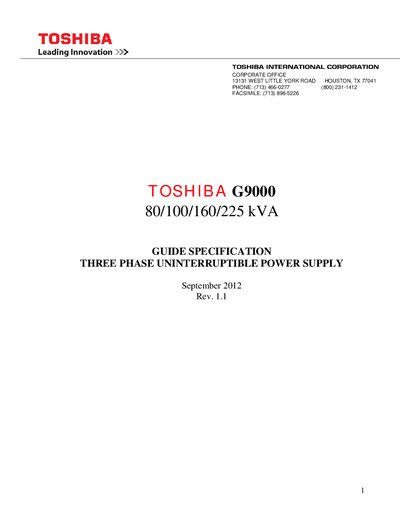

This is a guide specification of TOSHIBA G9000 80/100/160/225 kVA three-phase static uninterruptible power supply
This guide specification describes the Toshiba G9000 series of three‑phase, on‑line, solid‑state uninterruptible power supplies. It outlines the system architecture, components, and operating modes, including normal operation, loss of main power, and maintenance bypass.
Key technical data such as rated output capacities (80‑225 kVA), environmental limits, dimensions, weight, and reliability figures are provided, together with optional accessories like distribution cabinets, maintenance bypass panels, auxiliary transformer cabinets, and extended service options.
| Rated Output Capacity | 80/100/160/225 kVA |
|---|---|
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Operating Humidity | 5 % – 95 % (Non‑condensing) |
| Maximum Altitude | 7380 ft (2250 m) without derating |
| External Dimensions (80 kVA) | 27.6" × 32.8" × 78.7" |
| Weight (80 kVA) | 855 lbs |
The G9000 series is offered in 80, 100, 160, and 225 kVA (72, 90, 144, and 202.5 kW).
The unit can operate from 32 °F to 104 °F (0 °C to 40 °C).
Optional accessories include a Toshiba Distribution Cabinet (TDC), Maintenance Bypass Panel, Auxiliary Transformer Cabinets, Power Distribution Units, and extended service contracts.
