The Toshiba TLxE20 series LEDs feature 5mm package, InGaAlP technology, all plastic mold type, transparent lens, high intensity light emission, excellent low current light output, and are suitable for outdoor message signs, safety equipment and other applications
The TLxE20 series includes ultra‑bright InGaAIP LEDs in orange, red, and yellow colors, packaged in a 5 mm plastic mold with a transparent lens. These devices are intended for outdoor message signs, safety equipment, and a wide range of general electronics applications.

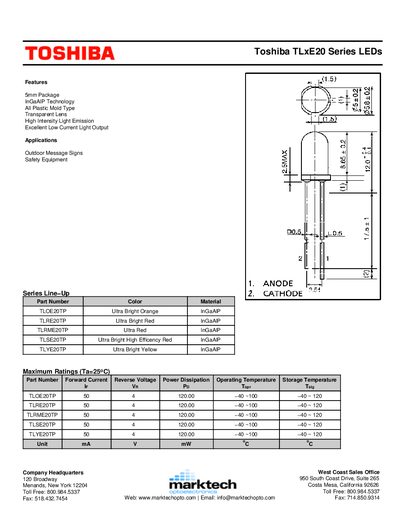

The leaflet lists key specifications such as forward current, reverse voltage, power dissipation, operating and storage temperature ranges, as well as luminous intensity and forward voltage curves. It also includes important handling and soldering precautions, and a notice about intended and unintended usage.
| Forward Current (IF) | 50 mA |
|---|---|
| Reverse Voltage (VR) | 4 V |
| Power Dissipation | 120 mW |
| Operating Temperature Range | -40 °C to 100 °C |
| Luminous Intensity (TL‑OE2OTP) | 4760 cd |
The maximum soldering temperature is 260 °C, with a soldering time not exceeding 3 seconds.
If a photodetector is placed near the LED, ensure it will not be affected by the emitted IR light.
