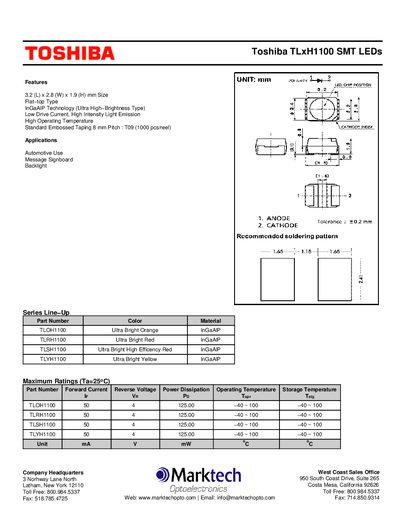

The document provides information about the features and characteristics of Toshiba TLxH1100 SMT LEDs, including size, light emission intensity, drive current, operating temperature, etc.
The TLxH1100 series is a family of ultra‑bright surface‑mount LEDs using InGaAIP technology. The handbook lists the physical dimensions, package type, and key performance figures for each color variant (orange, red, yellow). It also includes safety notices and handling guidelines from Toshiba.
Technical data such as forward current, reverse voltage, power dissipation, operating temperature range, luminous intensity, and forward voltage are presented in tables and graphs for each part number (TLOH1100, TLRH1100, TLSH1100, TLYH1100). Application examples include automotive use, message signboards, and backlighting.
| Package size (L × W × H) | 3.2 mm × 2.8 mm × 1.9 mm |
|---|
The document shows a pattern of 1.68 mm – 1.18 mm – 1.65 mm spacing.
