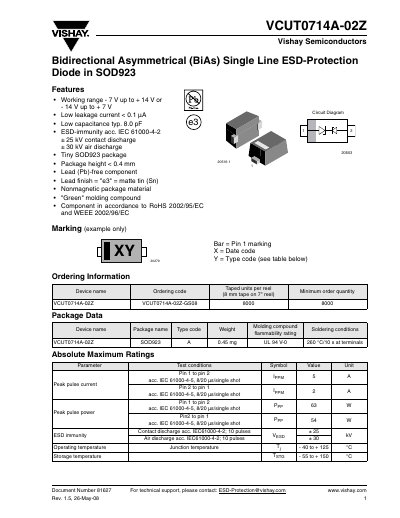

VCUT0714A-02Z is a single-line ESD-Protection diode from Vishay. It features working voltage range of -7V to +14V, leakage current less than 0.1 uA, capacitance less than 8.0 pF, ESD immunity according to IEC 61000-4-2 standard, tiny SOD923 package, height less than 0.4mm, lead free component, matte tin lead finish, nonmagnetic package material, green molding compound, and RoHS 2002/95/EC and WEEE 2002/96/EC compliance.
The VCUT0714A-02Z is a bidirectional asymmetrical (BiAs) single‑line ESD‑protection diode offered by Vishay. It clamps positive and negative over‑voltage transients to ground while providing a very low leakage current and small capacitance, making it suitable for high‑speed signal lines.
The device is supplied in a SOD923 surface‑mount package (height < 0.4 mm) and complies with RoHS and WEEE directives. Electrical characteristics such as reverse stand‑off voltage, breakdown voltage, clamping voltage and peak pulse current are specified in the data sheet for both polarity directions.
| Working voltage range | -7 V to +14 V (or -14 V to +7 V) |
|---|---|
| Leakage current | < 0.1 µA |
| Capacitance (typical) | 8.0 pF |
| ESD immunity (contact discharge) | ± 25 kV |
| Reverse stand‑off voltage (positive polarity) | 14 V |
| Reverse breakdown voltage (positive polarity) | 14.5 V |
| Operating temperature (junction) | -40 °C to +125 °C |
It operates from –7 V up to +14 V or –14 V up to +7 V.
The typical leakage current is less than 0.1 µA.
The device meets IEC 61000‑4‑2 with ± 25 kV contact discharge immunity.
