DF3 series 2mm pitch connectors can be used for discrete wire connection. The product is UL CSA approved and features low mounting height and multiple styles

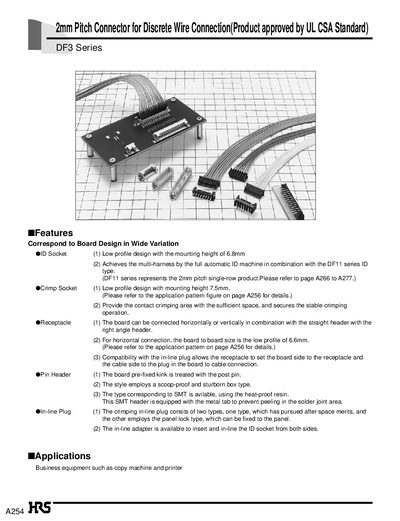

The DF3 series connectors from HRS are low‑profile 2 mm pitch products designed for board‑to‑board and board‑to‑cable connections. The handbook describes various connector types such as ID sockets, crimp sockets, receptacles, pin headers, and in‑line plugs, and lists their mechanical dimensions and material finishes.
Technical data include operating temperature ranges, voltage and current ratings, insulation resistance, and recommended soldering profiles. Ordering information, part numbers, packaging options, and compatible crimping tools are also provided to help users select the correct items for their applications.
| Contact Pitch | 2 mm |
|---|---|
| Rated Voltage | 30 V AC |
| Insulation Resistance | 1000 MΩ min. @ 500 V DC |
| Withstanding Voltage | 650 V AC for 1 min |
| Contact Resistance | ≤ 30 mΩ |
| Operating Temperature Range | -30 °C to +85 °C |
| Storage Temperature Range | -10 °C to +60 °C |
| Current Rating (AWG 24‑28) | 1 A |
| Insulator Material | Polyamide Black UL94V‑0 |
All DF3 series connectors have a 2 mm contact pitch.
The connectors operate from –30 °C to +85 °C.
