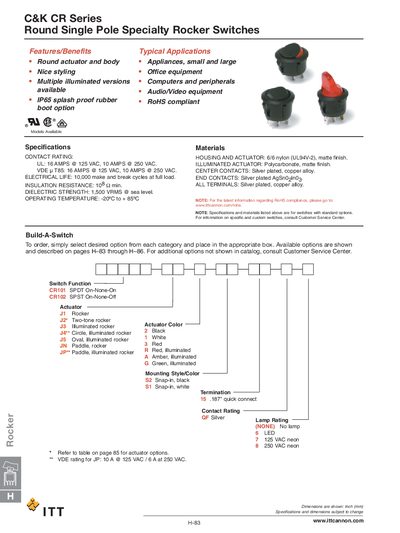

The document provides specifications and dimensions of C&K CR Series Round Single Pole Specialty Rocker Switches. The features include a round actuator and body, multiple illuminated versions available, and an IP65 splash-proof rubber boot option. The switch is suitable for appliances, small and large, office equipment, computers and peripherals, audio/video equipment, etc.
The C&K CR Series round single pole specialty rocker switches are designed for appliances, office equipment, computers, and audio/video gear. They offer a round actuator, stylish finishes, and multiple illuminated versions.
The leaflet lists contact ratings (UL 16 A @ 125 V, 10 A @ 250 V), electrical life of 10 000 cycles, insulation resistance of 10⁸ Ω, dielectric strength of 1 500 V RMS, and operating temperature from –20 °C to + 85 °C. Various actuator styles, mounting options, and quick‑connect terminations are detailed, along with RoHS compliance information.
| Contact rating (UL) | 16 A @ 125 VAC, 10 A @ 250 VAC |
|---|---|
| Electrical life | 10 000 make‑and‑break cycles at full load |
| Insulation resistance | 10⁸ Ω min |
| Dielectric strength | 1 500 V RMS @ sea level |
| Operating temperature | -20 °C to +85 °C |
| Housing material | 6/6 nylon (UL94V‑2), matte finish |
| Illuminated actuator material | Polycarbonate, matte finish |
| Quick‑connect termination | 15 × 0.187 in quick connect |
The switches are rated for 16 A at 125 VAC and 10 A at 250 VAC (UL rating).
They are rated for 10 000 make‑and‑break cycles at full load.
Yes, the switches are RoHS compliant; see the ITT website for the latest information.
