BZG03C-Series is a high reliability glass passivated junction zener diode from Vishay Semiconductors, with a voltage range of 10V to 270V, suitable for voltage stabilization applications.
The BZG03C series Zener diodes from Vishay feature a glass‑passivated junction, high reliability, and a voltage range of 10 V to 270 V. They are designed for surface‑mount applications, fitting onto 5 mm SMD footpads and are lead‑free and RoHS compliant.

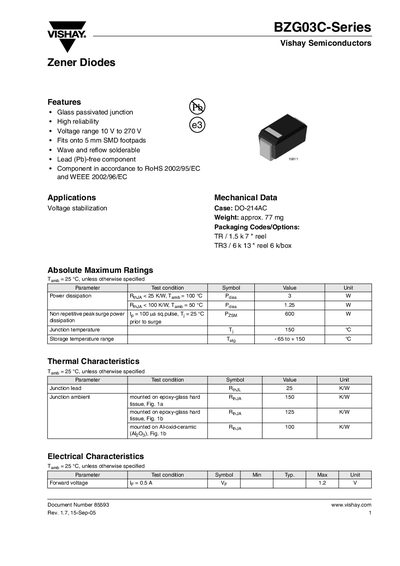

The datasheet lists absolute maximum ratings, thermal characteristics, and detailed electrical parameters such as forward voltage, power dissipation, and junction temperature. Package dimensions and recommended footprints are also provided, along with standard legal and environmental notices.
| Voltage range | 10 V to 270 V |
|---|---|
| Junction temperature (Tj) max | 150 °C |
| Storage temperature range | -65 °C to +150 °C |
The BZG03C series covers a voltage range from 10 V to 270 V.
