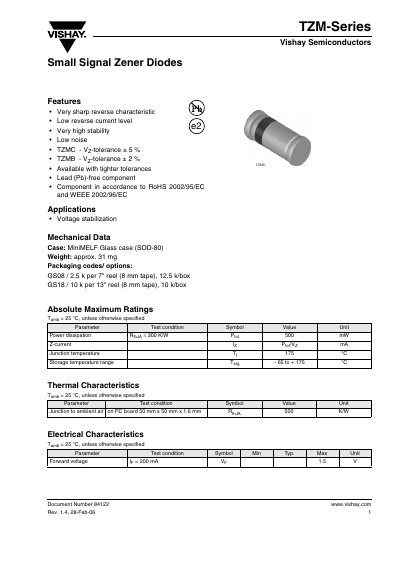

This document is the datasheet of Vishay Semiconductors' Small Signal Zener Diodes TZM-Series. This product has very high stability and low noise.
The Vishay TZM‑Series datasheet details small‑signal Zener diodes designed for voltage stabilization, featuring a very sharp reverse characteristic, low reverse current, high stability, and low noise.
It includes mechanical data, absolute maximum ratings, thermal and electrical characteristics, typical performance curves, package dimensions, and compliance statements such as RoHS and ozone‑depleting‑substance policies.
| Power dissipation | 500 mW |
|---|---|
| Junction temperature (max) | 175 °C |
| Storage temperature range | -65 °C to +175 °C |
| Package type | MiniMELF (SOD‑80) glass case |
| RoHS compliance | Lead‑free, RoHS 2002/95/EC |
The maximum power dissipation is 500 mW.
They are supplied in a MiniMELF (SOD‑80) glass case.
Yes, they are lead‑free and meet RoHS 2002/95/EC requirements.
The storage temperature range is –65 °C to +175 °C.
