This series of Zener diodes is packaged in a SOD-323 surface mount package that has a power dissipation of 200 mW. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.

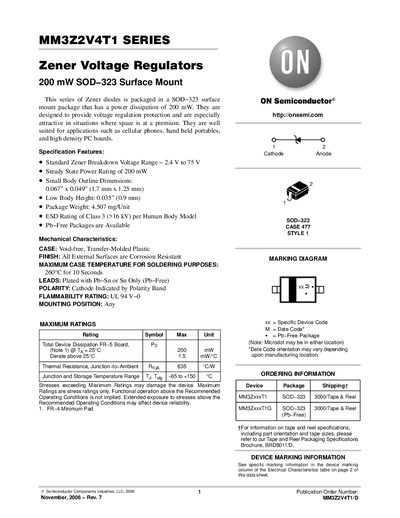

The MM3Z2V4T1 series from ON Semiconductor provides Zener voltage regulation in a compact SOD‑323 surface‑mount package. Designed for space‑constrained applications such as cellular phones and high‑density PCBs, the devices offer a breakdown voltage range from 2.4 V to 75 V and a steady‑state power rating of 200 mW.
Key features include a Class 3 ESD rating (>16 kV), UL 94 V‑0 flammability rating, and a maximum case temperature of 260 °C for 10 seconds during soldering. Mechanical specifications, ordering information, and typical electrical characteristics are detailed throughout the document.
| Zener Voltage Range | 2.4 V to 75 V |
|---|---|
| Steady State Power Rating | 200 mW |
| Package Type | SOD-323 Surface Mount |
| Maximum Case Temperature for Soldering | 260 °C for 10 seconds |
| ESD Rating | Class 3 (>16 kV) |
| Flammability Rating | UL 94 V‑0 |
The series covers a breakdown voltage range from 2.4 V to 75 V.
Each device is rated for a steady‑state power dissipation of 200 mW.
They are supplied in a SOD‑323 surface‑mount package.
The maximum case temperature for soldering is 260 °C for up to 10 seconds.
