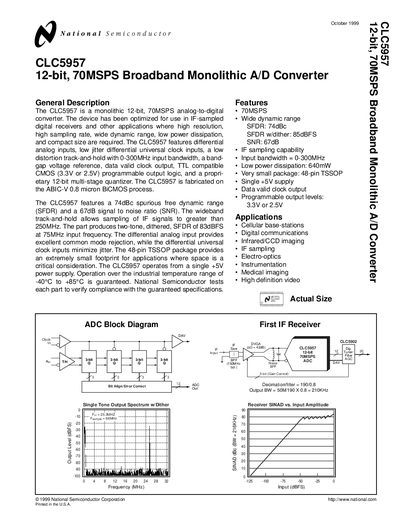

The CLC5957 is a monolithic 12-bit, 70MSPS analog-to-digital converter optimized for use in IF-sampled digital receivers and other applications requiring high resolution, high sampling rate, wide dynamic range, low power dissipation, and compact size. It features differential analog inputs, low jitter differential universal clock inputs, a low distortion track-and-hold with 0-300MHz input bandwidth, a band-gap voltage reference, data valid clock output, TTL compatible CMOS (3.3V or 2.5V) programmable output logic, and a proprietary 12-bit multi-stage quantizer.
The CLC5957 is a monolithic 12‑bit, 70‑75 MSPS analog‑to‑digital converter optimized for IF‑sampled digital receivers and other high‑speed, high‑resolution applications. It operates from a single +5 V supply, offers differential inputs, a low‑jitter universal clock, and a proprietary 12‑bit multi‑stage quantizer in a compact 48‑pin TSSOP package.
The document provides full electrical characteristics, pin definitions, physical dimensions, bias and clock interface schemes, as well as recommended application circuits and an evaluation‑board layout. It also includes a life‑support policy disclaimer and contact information for technical support.
