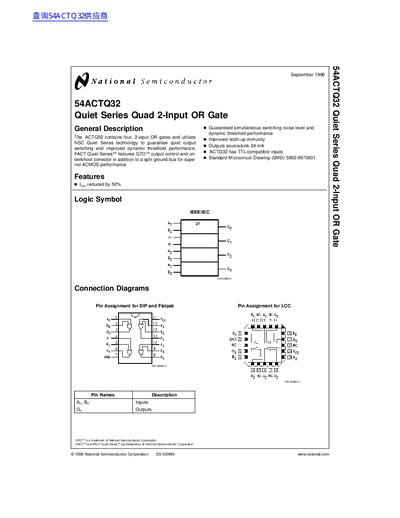

The 54ACTQ32 Quiet Series Quad 2-Input OR Gate is a product of NATIONAL SEMICONDUCTOR, which contains four 2-input OR gates and utilizes NSC Quiet Series technology to guarantee quiet output switching and improved dynamic threshold performance. The Quiet Series products also feature GTO output control and undershoot corrector, as well as a split ground bus for superior ACMOS performance.
The 54ACTQ32 is a Quiet Series quad 2‑input OR gate that provides TTL‑compatible inputs and GTO™ output control with reduced switching noise. It offers 24 mA source/sink capability per output and features a split ground bus for improved performance.
The datasheet includes electrical characteristics, absolute maximum ratings, recommended operating conditions, pin assignments for DIP, Flatpak and LCC packages, and physical dimensions. It also contains the required life‑support disclaimer and contact information for National Semiconductor.
| Supply Voltage (Vcc) | 0.5 V to 7.0 V |
|---|---|
| Output Source/Sink Current | 24 mA |
| Operating Temperature (Tj) | -55 °C to +125 °C |
| Package Type | 14‑Lead Ceramic Dual‑In‑Line (DIP) and Flatpak |
The device can be powered with a supply voltage from 0.5 V up to 7.0 V.
Each output can source or sink up to 24 mA.
It is rated for operation from –55 °C to +125 °C.
The part is offered in a 14‑lead ceramic dual‑in‑line (DIP) package and a 14‑lead ceramic flat‑pak package.
