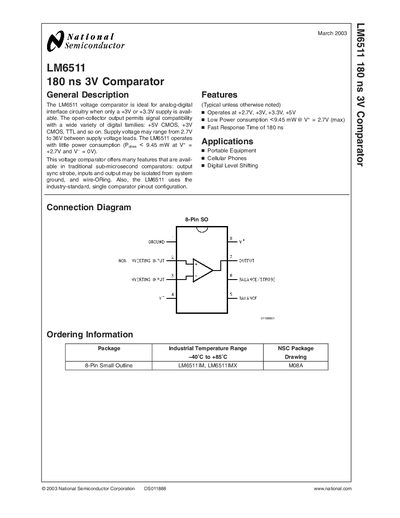

LM6511 180ns 3V Comparator is ideal for analog-digital interface circuitry when only a +3V or +3.3V supply is avail- able
The LM6511 voltage comparator is designed for analog‑digital interface circuits that operate from a single +3 V or +3.3 V supply. It features an open‑collector output compatible with many digital families, low power consumption (< 9.45 mW at 2.7 V), and a fast 180 ns response time.
Typical applications include portable equipment, cellular phones and digital level shifting. The device is supplied in an 8‑pin Small Outline package and includes specifications for supply voltage (0.3 V to +36 V), input voltage range, strobe current (2‑5 mA), and detailed electrical characteristics across temperature ranges.
| Supply Voltage Range | 0.3 V to +36 V |
|---|---|
| Response Time | 180 ns |
| Strobe ON Current | 2.0‑5.0 mA max |
| Package | 8‑Pin Small Outline (M) |
The LM6511 has a typical response time of 180 ns.
It operates from 0.3 V up to +36 V supply voltage.
The strobe pin should be driven with 3 mA to 5 mA current.
