CLC031A is a video deserializer/descrambler produced by Cirrus Logic, which supports SMPTE292M, 259M, and 344M standards

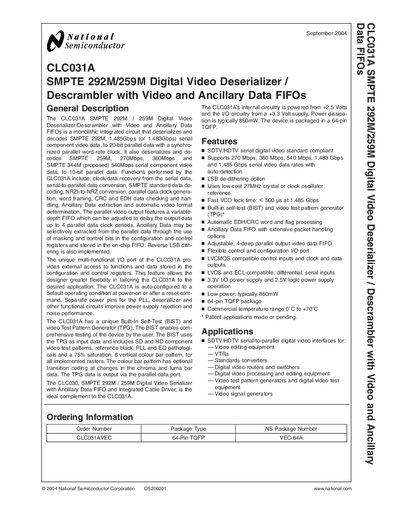

The CLCO31A is a SMPTE 292M/259M digital video deserializer and descrambler that converts high‑speed serial video streams to parallel data with built‑in FIFO, ancillary data extraction and automatic format detection. It operates from a 2.5 V core supply and 3.3 V I/O, dissipating about 850 mW, and is offered in a 64‑pin TQFP package.
The device supports data rates from 270 Mbps up to 1.485 Gbps, includes a Built‑In Self‑Test (BIST) and video Test Pattern Generator, and provides flexible I/O for configuration and control. Detailed electrical characteristics, pin assignments and recommended application circuits are provided throughout the document.
| Typical Power Dissipation | 850 mW |
|---|---|
| Package | 64‑pin TQFP |
| Core Supply Voltage | +2.5 V |
| I/O Supply Voltage | +3.3 V |
| Supported Serial Data Rates | 270 Mbps, 360 Mbps, 540 Mbps, 1.483 Gbps, 1.485 Gbps |
| Commercial Temperature Range | 0 °C to +70 °C |
The device includes a Built‑In Self‑Test (BIST) and a video Test Pattern Generator (TPG) for comprehensive self‑testing.
The ordering number is CLCO31AVEC.
The core circuitry runs from +2.5 V and the I/O circuitry from +3.3 V.
