Philips 74HC/HCT221 Dual Non-retriggerable Monostable Multivibrator Datasheet

The document describes the 74HC/HCT221 dual non-retriggerable monostable multivibrator with reset. The pulse width variance is typically less than ± 5%. The pin-out is identical to '123'. Overriding reset terminates the output pulse. The nB inputs have hysteresis for improved noise immunity. Output capability is standard (except for nREXT/CEXT). ICC category: MSI.

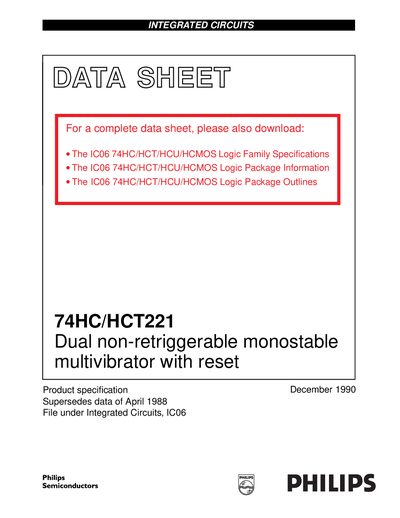

Philips 74HC/HCT221 Dual Non-retriggerable Monostable Multivibrator Datasheet - cover page
Brand
Philips
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
15
File format
PDF
File size
245 KB
Published
08 May, 2012
Updated
29 September, 2023
Models
HCT221, 74HC
MD5 checksum
04B5034B975490B9480133A8192B3E83

About this manual

The Philips 74HC/HCT221 is a high‑speed Si‑gate CMOS dual non‑retriggerable monostable multivibrator. Each section provides an active low‑going edge input (nA) and an active high‑going edge input (nB) that can also serve as enable inputs. The device offers jitter‑free triggering, excellent noise immunity, and an overriding reset that terminates the output pulse.

The datasheet details pin assignments, functional tables, timing diagrams, DC and AC characteristics, typical output pulse width versus timing capacitance, and power‑down protection recommendations. It also includes ordering information and package outlines for designers.

What's inside

  • Features
  • General Description
  • Quick Reference Data
  • Pin Description
  • Function Table
  • Timing Diagram
  • DC Characteristics
  • AC Characteristics
  • Typical Output Pulse Width
  • Power‑down Protection

Specifications

Pulse width variance< +5%
Output capabilitystandard (except for NRext/Cext)
Icc categoryMSI
Propagation delay (typical)15 ns
C input capacitance3.5 pF

Frequently asked questions

What pins are the trigger inputs on the 74HC/HCT221?

Pins 1 and 9 are the negative‑edge trigger inputs (nA), while pins 2 and 10 are the positive‑edge trigger inputs (nB).

How is the output pulse width calculated?

The output pulse width is defined by tw = 0.7 × Cext × Rext.

What is the typical input capacitance of the device?

The typical input capacitance is 3.5 pF.
