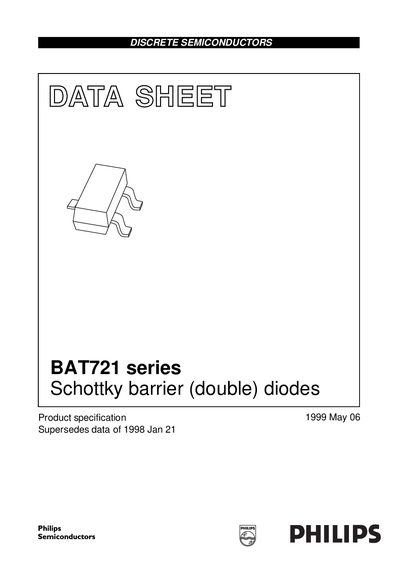

This datasheet introduces the features, applications and specifications of Philips Semiconductors BAT721 series Schottky diodes.
The BAT721 series are planar Schottky barrier diodes offered by Philips Semiconductors in a compact SOT23 surface‑mount package. They are available as single and double diodes with various pin configurations for high‑speed switching and voltage‑clamping applications.
Key specifications include a 40 V continuous reverse voltage, 200 mA continuous forward current, and low forward voltage drop (300 mV at 10 mA). The devices are rated for storage temperatures from –65 °C to +150 °C and feature a thermal resistance of 500 K/W. They are not intended for life‑support equipment.
| Continuous reverse voltage (Vr) | 40 V |
|---|---|
| Continuous forward current (Ir) | 200 mA |
| Storage temperature range | -65 °C to +150 °C |
| Maximum junction temperature (Tj) | 125 °C |
| Forward voltage at 10 mA | 300 mV |
| Forward voltage at 100 mA | 420 mV |
| Package type | SOT23, 3‑lead plastic surface‑mount |
The BAT721 series can withstand a continuous reverse voltage of 40 V.
They are supplied in a plastic SOT23 surface‑mount package with three leads.
No, the datasheet states they are not designed for use in life‑support appliances.
The forward voltage drop is about 300 mV at a forward current of 10 mA.
