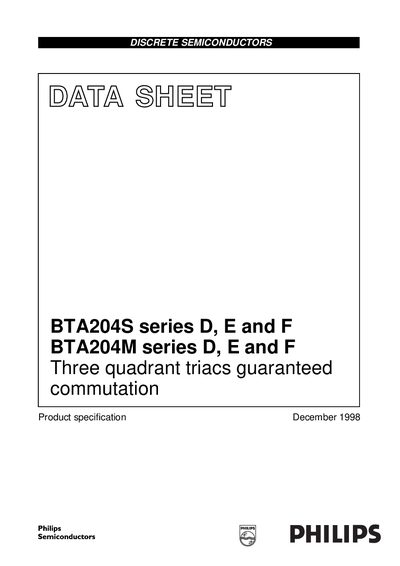

This data sheet describes the product specifications of BTA204S and BTA204M series D, E and F three-quadrant triacs. These devices are suitable for use in active motor control circuits or with other highly inductive loads.
The Philips BTA204S and BTA204M series are three‑quadrant triacs with guaranteed commutation, intended for motor‑control and other highly inductive loads. The datasheet provides electrical ratings, thermal characteristics, mechanical dimensions and mounting guidelines for the D, E and F voltage grades.
Key information includes off‑state voltage limits, on‑state current capabilities, thermal resistance values, storage and operating temperature ranges, as well as detailed pin configuration and package dimensions for surface‑mount applications.
| Non‑repetitive peak on‑state current (Ipeak) | 25 A |
|---|---|
| Thermal resistance junction‑to‑mounting base (full cycle) | 3.0 K/W |
| Storage temperature range | -40 °C to 150 °C |
| Maximum operating junction temperature | 125 °C |
| Gate trigger voltage (VGT) | 0.7 V (typical) to 1.5 V (max) |
They can be stored from –40 °C up to 150 °C.
The full‑cycle thermal resistance is specified as 3.0 K/W.
The datasheet lists a maximum non‑repetitive peak on‑state current of 25 A.
