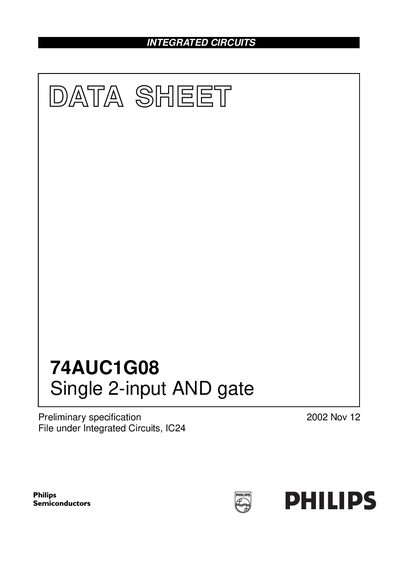

This document is a specification sheet for the 74AUC1G08 single 2-input AND gate. The product features a wide voltage range, high noise immunity, and low power consumption.
The Philips 74AUC1G08 is a low‑power, low‑voltage Si‑gate CMOS AND gate with Schmitt‑trigger inputs. It offers high noise immunity, ESD protection, and can operate with a supply voltage from 0.8 V to 2.7 V.
The document provides electrical characteristics, timing data, pin configuration, package outlines, and recommended soldering methods, along with absolute maximum ratings and disclaimer information.
| Supply voltage range | 0.8 V to 2.7 V |
|---|---|
| Output drive current | 8 mA (Vcc = 1.65 V) |
| Package types | SC‑88A (SOT353) and SC‑74A (SOT753) |
| Input capacitance | 4 pF |
| Latch‑up performance | exceeds 250 mA |
| ESD protection (HBM) | ≥ 2000 V |
The device operates with a supply voltage from 0.8 V up to 2.7 V.
It is offered in SC‑88A (SOT353) and SC‑74A (SOT753) surface‑mount packages.
The device meets HBM ESD protection exceeding 2000 V.
