BC846W and BC847W are NPN general purpose transistors with low current and low voltage characteristics. Suitable for general purpose switching and amplification applications.

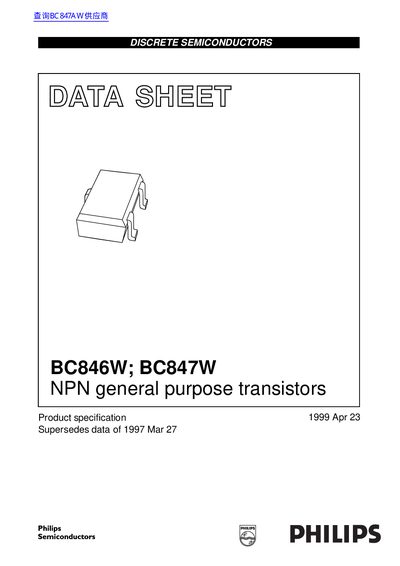

The BC846W and BC847W are NPN general‑purpose transistors offered in a surface‑mount SC70 (SOT‑323) package. They are intended for low‑current switching and amplification applications up to 100 mA.
The document provides absolute maximum ratings, thermal characteristics, typical DC current gain curves, and mechanical dimensions. It also includes marking codes, definitions of data‑sheet status, and worldwide contact information for Philips Semiconductors.
| Maximum Collector Current (Ic) | 100 mA |
|---|---|
| Peak Collector Current (Ic peak) | 200 mA |
| Storage Temperature (Tstg) | -65 °C to +150 °C |
| Operating Ambient Temperature (Tamb) | -65 °C to +150 °C |
| Package Type | SC70 / SOT‑323 surface‑mount package |
The BC846W can handle up to 100 mA of continuous collector current.
The BC847W is supplied in a surface‑mount SC70 (SOT‑323) plastic package.
