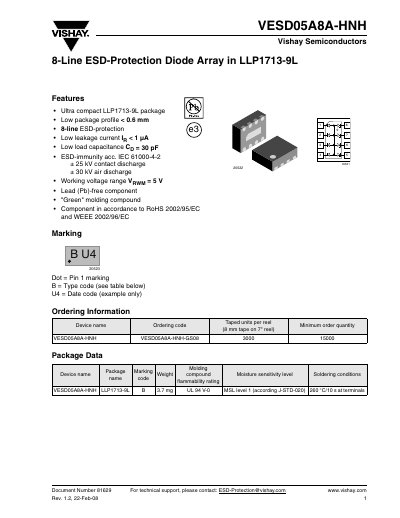

This document is the datasheet of VISHAY VESD05A8A-HNH, which is a 8-Line ESD-Protection Diode Array with ultra compact LLP1713-9L package, low leakage current, low load capacitance and ESD-immunity acc. IEC 61000-4-2 ± 25 kV contact discharge ± 30 kV air discharge
The VESD05A8A-HNH is an 8‑line ESD‑protection diode array offered by Vishay in an ultra‑compact LLP1713‑9L package. It provides low leakage current, low load capacitance, and high ESD immunity meeting IEC 61000‑4‑2 standards.
The document includes features, ordering information, absolute maximum ratings, electrical characteristics, typical performance graphs, package dimensions, and compliance statements such as RoHS and ozone‑depleting‑substance policies.
| Package | LLP1713-9L |
|---|---|
| Leakage current (IR) | < 1 µA |
| Load capacitance (CD) | 30 pF |
| Working voltage range (VRWM) | 5 V |
| Reverse breakdown voltage (VBR) | 68 V |
| Clamping voltage (VC) | 13 V |
| Forward voltage (VF) | 4.5 V |
It can protect up to 8 signal or data lines in BiAs mode.
The minimum reverse breakdown voltage is 68 V.
The leakage current is less than 1 µA at VRWM = 5 V.
Yes, the component complies with RoHS 2002/95/EC and WEEE 2002/96/EC.
