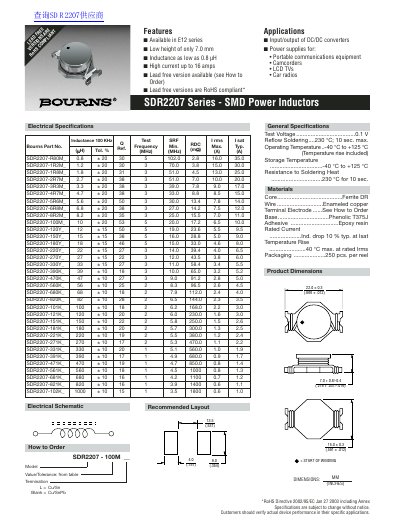

The SDR2207 series SMD power inductors feature E12 series, low height, low inductance, high current, etc. They are suitable for the input/output of DC/DC converters and power supplies for portable communications equipment, camcorders, LCD TVs, car radios, etc.
The SDR2207 Series are surface‑mount power inductors designed for DC/DC converters, portable communications equipment, camcorders, LCD TVs, and car radios. They are offered in the E12 series with options for lead‑free, RoHS‑compliant versions.
Key specifications include a 7.0 mm low profile, inductance as low as 0.8 µH, rated current up to 16 A, operating temperature from –40 °C to +125 °C, and a reflow soldering profile of 230 °C for up to 10 seconds. Packaging is 250 pieces per reel, and detailed dimensions and ordering information are provided.
| Height | 7.0 mm |
|---|---|
| Maximum Current | 16 A |
| Inductance (minimum) | 0.8 µH |
| Operating Temperature | -40 °C to +125 °C |
| Storage Temperature | -40 °C to +125 °C |
| Test Voltage | 0.1 V |
| Reflow Soldering Temperature | 230 °C (max 10 s) |
| Packaging | 250 pcs per reel |
The inductors can handle up to 16 amps of current.
They have a low profile of only 7.0 mm.
Lead‑free versions of the SDR2207 series are RoHS compliant.
Reflow soldering should be performed at 230 °C for a maximum of 10 seconds.
