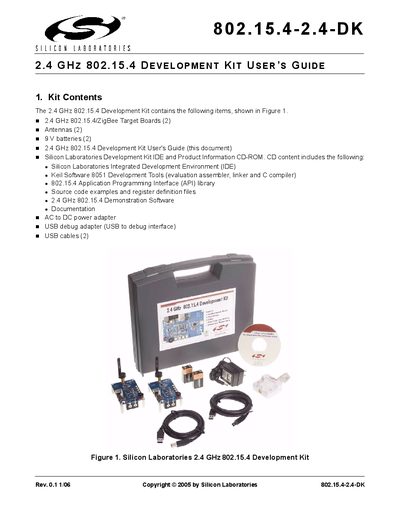

This document describes the contents and overview of the Silicon Laboratories 802.15.4-2.4-DK 2.4 GHZ 802.15.4 Development Kit. The kit includes target boards, antennas, batteries, user's guide, development tools, etc. The kit can be used to demonstrate and develop a two-node 802.15.4 network, providing both demonstration software and a complete development environment.
The 2.4 GHz 802.15.4 Development Kit provides everything needed to demonstrate and develop a two‑node 802.15.4 network. It includes target boards, antennas, batteries, a USB debug adapter, and software tools such as an IDE, compiler, and API libraries.
The manual is organized into sections on kit contents, an overview of the kit, demonstration tools, development tools, hardware details, and contact information. It also references additional application notes (AN267, AN268, AN269, AN222) for deeper software and hardware guidance.
| Microcontroller | C8051F121 |
|---|---|
| Radio Transceiver | Chipcon CC2420 2.4 GHz 802.15.4 |
| Power Supply | Two 9 V batteries |
| Antennas | Two antennas |
| USB Debug Adapter | Included |
Each board includes a C8051F121 microcontroller, a CC2420 2.4 GHz 802.15.4 transceiver, a USB interface, JTAG programming interface, push‑buttons, LEDs, and a voltage regulator.
