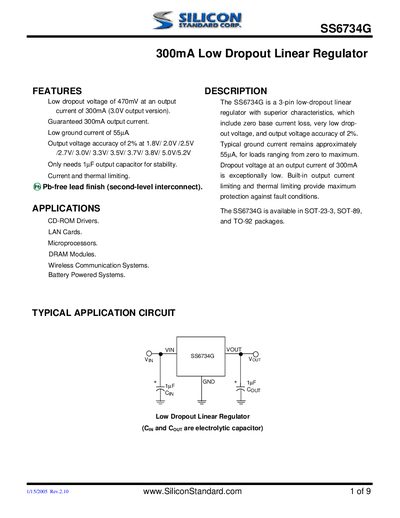

The SS6734G is a 3-pin low-dropout linear regulator with superior characteristics, which include zero base current loss, very low drop-out voltage, and output voltage accuracy of 2%. Typical ground current remains approximately 55µA, for loads ranging from zero to maximum. Dropout voltage at an output current of 300mA is exceptionally low. Built-in output current limiting and thermal limiting provide maximum protection against fault conditions. The SS6734G is available in SOT-23-3, SOT-89, and TO-92 packages.
The SS6734G is a 300 mA low‑dropout linear regulator offering a low dropout voltage of 470 mV at full load and an output voltage accuracy of ±2 % across a wide range of output voltages. It features a low ground current of about 55 µA and includes built‑in current and thermal limiting for protection.
The device is offered in SOT‑23‑3, SOT‑89 and TO‑92 packages. Electrical characteristics such as input voltage range, temperature range, and typical performance curves are detailed, along with pin descriptions, physical dimensions, and ordering information.
| Output current | 300 mA |
|---|---|
| Dropout voltage | 470 mV at 300 mA |
| Output voltage accuracy | ±2 % |
| Ground current | 55 µA |
| Operating temperature range | -40 °C to 85 °C |
| Input supply voltage range | -0.3 V to 12 V |
The dropout voltage is 470 mV at an output current of 300 mA.
The regulator provides a guaranteed output current of 300 mA.
It operates from –40 °C to 85 °C.
