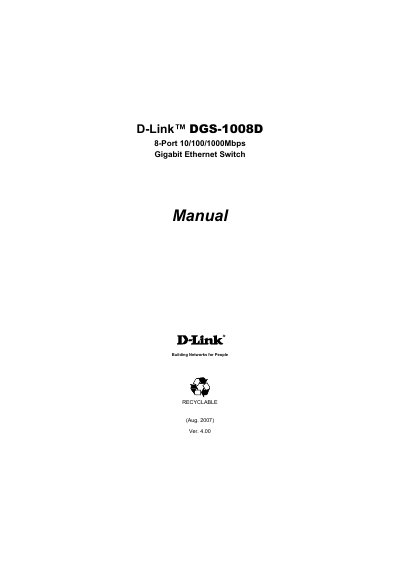

D-Link DGS-1008D 8-Port 10/100/1000Mbps Gigabit Ethernet Switch
This manual covers the DGS-1008D unmanaged gigabit Ethernet switch, describing its physical features, front‑panel LEDs, rear‑panel connectors, and the D‑Link Green Ethernet power‑saving technology. It includes detailed installation steps, mounting instructions, power‑on procedures, and guidance for connecting the switch to end nodes, hubs, or network backbones.
Safety notices, FCC and CE Class B warnings, and electrostatic discharge precautions are provided, followed by an extensive technical specifications section that lists supported data rates, power requirements, environmental limits, and compliance standards. The document also explains QoS support with 802.1p priority queuing and includes a glossary of networking terms.
| Number of ports | Eight 10/100/1000BASE‑T Gigabit Ethernet ports |
|---|---|
| Data transfer rate (Gigabit) | 2000 Mbps full‑duplex |
| Power consumption | 6 W (maximum) |
| Operating temperature | 0 °C ~ 40 °C (32 °F ~ 104 °F) |
| DC input | DC 7.5 V/1 A (or 1.5 A) |
| Dimensions | 5.59 in. × 4.53 in. × 1.18 in. |
The DGS-1008D provides eight ports that support 10 Mbps, 100 Mbps, and 1000 Mbps (Gigabit) Ethernet speeds.
Yes, the switch supports 802.1p priority queuing for QoS, allowing traffic to be prioritized across four hardware queues.
The switch uses a DC input of 7.5 V with a current rating of 1 A (or 1.5 A for some regions) and consumes up to 6 W.
