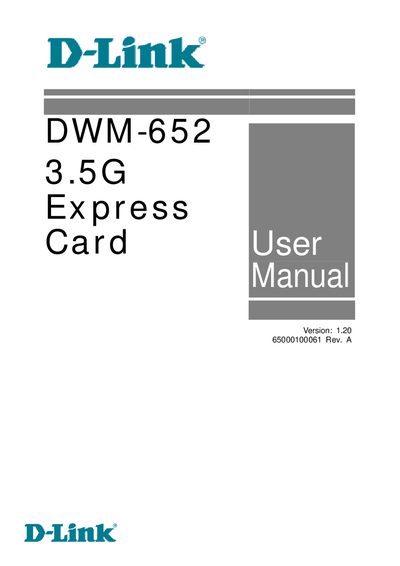

This document is the user manual of DWM-652 3.5G Express Card, which introduces the product features, usage methods, etc.
This manual guides users through installing the D-Link DWM-652 3.5G data card via ExpressCard, PCMCIA, or USB adapters, and explains required SIM information and hardware setup. It also covers software installation, basic operation, SMS messaging, and configuration settings.
Safety notices, regulatory compliance, and a glossary of technical terms are included, along with detailed specifications of the device’s hardware, network bands, and performance capabilities.
| Operating System | Windows 2000 SP4+, XP SP2+, Vista |
|---|---|
| Hard Drive Space | 30 MB |
| Interface | ExpressCard slot, 2 USB ports or PCMCIA slot |
| Dimensions | 119.6 x 42 x 11.3 mm (L x W x H) |
| Weight | 40 g |
| Onboard Memory | 64 MB NAND Flash & 64 MB SDRAM |
| GSM Bands | 850, 900, 1800, 1900 |
| UMTS Bands | 850, 1900, 2100 |
| Downlink Speed (HSDPA) | 7.2 Mbps (max) |
| Uplink Speed | 384 Kbps (max) |
| Radio/Band Selection | 3/3.5G EU+Asia (2100), US (850/1900); 2G EU+Asia (900/1800), US (850/1900) |
| IP Settings | APN, DNS, DHCP, Static, Radius |
The DWM-652 can be installed via an ExpressCard slot, a PCMCIA slot, or through a USB adaptor casing using two USB ports.
The device supports HSDPA downlink speeds up to 7.2 Mbps.
