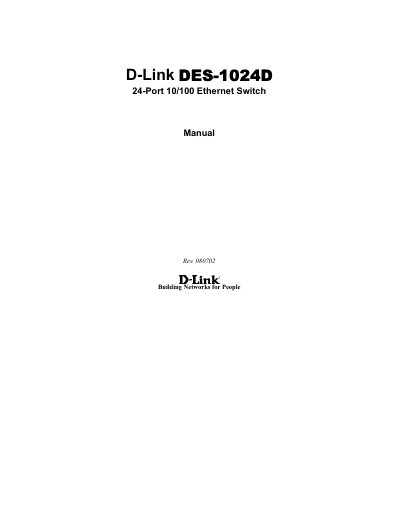

D-Link DES-1024D 24-port 10/100 Ethernet Switch Manual, introduces the features and characteristics of the switch, and provides installation instructions
This manual describes the D-Link DES-1024D 24‑port 10/100Mbps Fast Ethernet switch, its features, and how to install and configure it in a network. It includes safety guidelines, unpacking instructions, desktop and rack‑mount installation steps, and details on front‑panel LEDs and external connectors.
Key sections cover the switch’s technical specifications, performance data, and warranty information, helping users verify compatibility, understand operating limits, and obtain support when needed.
| Number of Ports | 24 x 10/100Mbps Auto‑MDI/MDIX ports |
|---|---|
| Data Transfer Rate | Ethernet 10Mbps (half‑duplex), 20Mbps (full‑duplex); Fast Ethernet 100Mbps (half‑duplex), 200Mbps (full‑duplex) |
| Power Consumption | 8.25 W (max) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Dimensions | Width 11.02 in., Depth 7.09 in., Height 1.73 in. |
| MAC Address Table Size | 8 K entries |
The DES-1024D provides 24 Ethernet ports.
The switch consumes up to 8.25 watts.
It operates from 0 °C to 40 °C (32 °F to 104 °F).
It can store up to 8 K MAC address entries.
