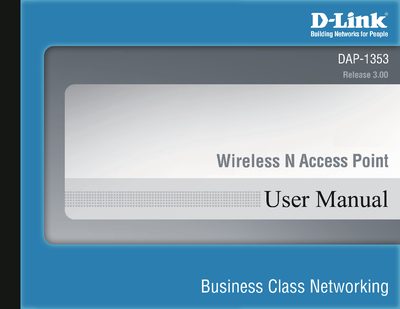

D-Link DAP-1353 User Manual, introduces the features and characteristics of the product, including wireless network, four operational modes, configuration, etc.
The DAP-1353 is a Business Class Wireless N Access Point that supports four operation modes—Access Point, WDS with AP, WDS, and Wireless Client. It offers up to 300 Mbps data rates, WPA/WPA2 security, and SNMP v3 management, making it suitable for offices, trade shows, and other environments.
This manual covers product overview, installation steps, wireless basics, configuration options, system settings, logging, maintenance, and detailed technical specifications. It also includes information on firmware updates, SNMP, and the AP Manager II software for network monitoring.
| Wireless Frequency Range | 2.4 to 2.4835 GHz |
|---|---|
| Operating Voltage | 5 V / 2.5 A |
| Maximum Power Consumption | 10.5 W |
| Transmit Output Power | 18 dBm @ 2.4 GHz |
| Antenna Gain | 3 dBi @ 2.4 GHz |
| Ethernet Port | 1 × 10/100/1000 Mbps |
| Dimensions (L×W×H) | 198 mm × 123 mm × 32 mm |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10 %–90 % (non‑condensing) |
It can operate in Access Point, WDS with AP, WDS, or Wireless Client mode.
The device supports WPA/WPA2 Personal and Enterprise, as well as WEP 64/128‑bit.
It provides a single 10/100/1000 Mbps Ethernet port.
