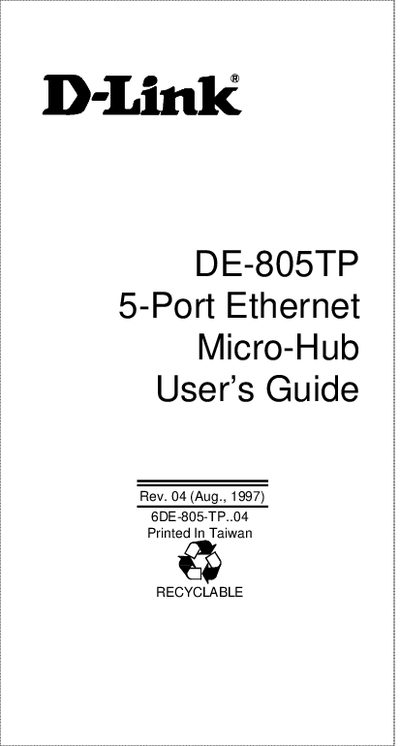

D-Link DE-805TP 5-Port Ethernet Micro-Hub User Manual

The DE-805TP is a 5-port Ethernet micro-hub with recyclable features.

Brand: D-Link
Category: Network Switches
Document type: User Manual
Language: English
Pages: 19
File format: PDF
File size: 308 KB
Published: 08 May, 2012
Updated: 28 September, 2023
MD5 checksum: 128B34BC5BE30625B81364F4CA4E23C2
PDF: D-Link DE-805TP 5-Port Ethernet Micro-Hub User Manual PDF

About this manual

This guide covers the D-Link DE-805TP 5‑Port Ethernet Micro‑Hub, a compact hub designed for desktop or flat‑surface installation. It includes safety notices, FCC Class B compliance information, and trademark details.

Key sections describe how to attach the stabilizing stand, connect the required AC power adapter, use straight‑through twisted‑pair cables for device connections, and cascade up to four hubs using the uplink port. The manual also offers troubleshooting tips for radio‑frequency interference and lists compatible power adapters.

What's inside

Trademarks
Installation
Attaching the Hub Stand
Connecting Power
Connecting Twisted‑Pair Segments
Connecting Hubs Together
FCC Warning

Specifications

Port count	5
Maximum twisted‑pair segment length	100 m
FCC class	Class B
FCC ID	KA2ED3805TP
Fuse protection	None provided

Frequently asked questions

What type of cable should be used to connect devices to the hub?

Use a straight‑through twisted‑pair cable with RJ‑45 connectors on both ends.

How can multiple DE-805TP hubs be connected together?

Connect port 5 of each hub, set it to the “Uplink” position, and link the hubs with a straight‑through twisted‑pair cable up to 100 m.

What should be done if the hub causes radio interference?

Reorient or relocate the receiving antenna, increase separation between the hub and the receiver, or use a different circuit and shielded cables.
