TP-LINK TL-WN322G 54M Wireless USB Adapter is a wireless USB adapter that offers flexibility and mobility to install in the most convenient location available. It also features auto-sensing capability and dynamic range shifting to ensure optimal data transmission speeds.
The TP-Link TL-WN322G Wireless USB Adapter provides flexible, high‑speed Wi‑Fi connectivity for PCs and notebooks. It supports IEEE 802.11g and 802.11b standards, delivering up to 54 Mbps data rates and includes AP Client mode for PSP connections.

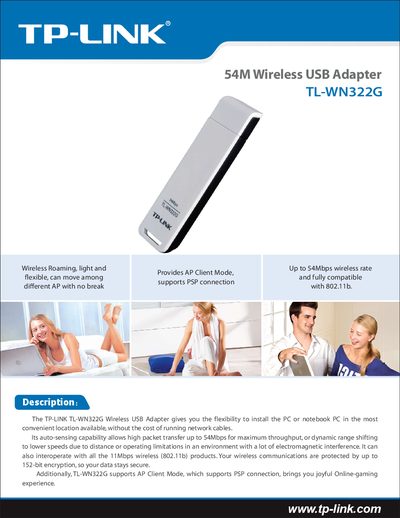

The manual includes detailed specifications, installation steps, and configuration guidance, along with a quick‑setup guide and driver utility information. It also lists environmental limits, security options, and physical dimensions of the device.
| Wireless Signal Rates (802.11g) | 54/48/36/24/12/9/6 Mbps (Auto‑Sensing) |
|---|---|
| Wireless Signal Rates (802.11b) | 11/5.5/2/1 Mbps (Auto‑Sensing) |
| Frequency Range | 2.4‑2.4835 GHz |
| Modulation Types | DBPSK, DOPSK, OFDM, CCK |
| Receiver Sensitivity (54 Mbps) | -68 dBm @10% PER |
| Wireless Security | 64/128/152‑bit WEP, WPA/WPA2, WPA‑PSK/WPA2‑PSK (TKIP/AES) |
| Range | Indoors up to 100 m, outdoors up to 300 m |
| Operating Temperature | 0 °C – 40 °C (32 °F – 104 °F) |
| Dimensions | 86.5 × 24 × 10 mm (3.4 × 0.9 × 0.4 in) |
It supports IEEE 802.11g and IEEE 802.11b standards.
In 802.11g mode the adapter can reach up to 54 Mbps.
The adapter supports 64/128/152‑bit WEP, WPA/WPA2, and WPA‑PSK/WPA2‑PSK with TKIP/AES encryption.
It operates from 0 °C to 40 °C (32 °F to 104 °F).
