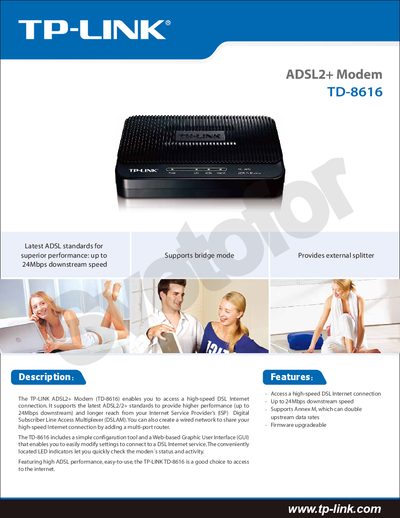

The TP-LINK ADSL2+ Modem (TD-8616) enables you to access a high-speed DSL Internet connection. It supports the latest ADSL2/2+ standards to provide higher performance (up to 24Mbps downstream) and longer reach from your Internet Service Provider’s (ISP) Digital Subscriber Line Access Multiplexer (DSLAM). You can also create a wired network to share your high-speed Internet connection by adding a multi-port router. The TD-8616 includes a simple configuration tool and a Web-based Graphic User Interface (GUI) that enables you to easily modify settings to connect to a DSL Internet service. The conveniently located LED indicators let you quickly check the modem's status and activity. Featuring high ADSL performance, easy-to-use, the TP-LINK TD-8616 is a good choice to access the internet.
The TD-8616 ADSL2+ Modem enables high‑speed DSL Internet access with up to 24 Mbps downstream speed and support for Annex M to double upstream rates. It includes a simple configuration tool and a web‑based GUI for easy setup, plus LED indicators for status monitoring.
The device offers a single RJ‑45 WAN port, one Ethernet LAN port, and status LEDs for LAN, ADSL, activity, and power. Physical dimensions are 5.5 × 3.6 × 1.1 in (140 × 92 × 29 mm) and it operates from 0 °C to 40 °C. Firmware can be upgraded locally via web, TFTP, or console, and the package includes a splitter, power adapter, cables, and a resource CD.
| Dimensions (W×D×H) | 5.5 × 3.6 × 1.1 in (140 × 92 × 29 mm) |
|---|---|
| Storage Temperature | -40 °C ~ 70 °C |
| Maximum Downstream Speed | 24 Mbps |
| Maximum Upstream Speed (Annex M) | Up to double standard upstream rate |
| Supported Modulation Standards | G.992.1, G.992.2, G.992.3, G.992.5, ADSL2, ADSL2+ (Annex A/B/A/L/M) |
| Maximum Transmission Distance | 6 km |
The TD-8616 supports up to 24 Mbps downstream speed.
It has one Ethernet LAN port.
Yes, the firmware can be upgraded locally via the web interface, TFTP, or console.
