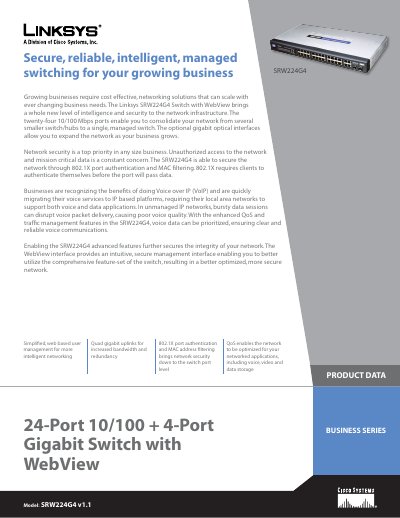

The SRW224G4 is a 24-port 10/100Mbps + 4-port Gigabit Ethernet Switch with WebView from Linksys. It supports Web configuration management and 802.1X port authentication and MAC filtering to ensure network security. It also supports QoS and traffic management to prioritize voice data transmission.
The SRW224G4 provides 24 ten‑hundred‑megabit Ethernet ports and four gigabit ports, allowing businesses to consolidate multiple devices onto a single managed switch. Optional gigabit optical interfaces and shared mini‑GBIC ports enable future expansion and high‑speed uplinks.
Management is performed through a web‑based WebView interface, with additional remote options such as SSH, SSL, SNMP and Telnet. The switch supports advanced security (802.1X authentication, MAC filtering, ACLs), QoS prioritization, VLAN segmentation, link aggregation, port mirroring and storm control to ensure reliable voice, video and data traffic.
| Ports | 24 RJ‑45 10/100, 4 RJ‑45 10/100/1000, 2 shared SFP slots |
|---|---|
| Switching Capacity | 12.8 Gbps, non‑blocking |
| MAC Table Size | 8 K entries |
| Number of VLANs | 256 |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimensions (W × H × D) | 16.93" × 1.75" × 7.97" (430 × 44 × 203 mm) |
The switch can be configured and monitored via a standard web browser using the WebView management interface, as well as through SSH, SSL, SNMP and Telnet.
Security features include 802.1X port authentication, MAC address filtering, ACLs for traffic control, and support for RADIUS authentication.
The switch provides a non‑blocking switching capacity of 12.8 Gbps.
