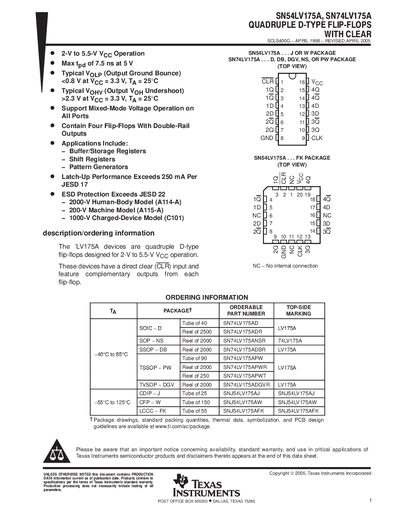

The SN74LV175A is a quadruple D-type flip-flop from TI that operates at a voltage range of 2-5.5 V and supports mixed-mode voltage operation. It also features complementary outputs.
The SN54LV175A and SN74LV175A are quadruple D‑type flip‑flops with a direct clear input and complementary outputs, designed for 2 V to 5.5 V supply operation. They are suitable for buffer/storage registers, shift registers, and pattern generators.
Key specifications include supply voltage ranges up to 7.5 V, continuous output current up to 25 mA, and operating temperature ranges from –55 °C to 125 °C (SN54LV175A) or –40 °C to 85 °C (SN74LV175A). Various package options such as SOIC, SSOP, TVSOP, and TSSOP are offered with detailed ordering information.
| Operating temperature range (SN54LV175A) | -55 °C to 125 °C |
|---|
SN54LV175A operates from –55 °C to 125 °C, while SN74LV175A operates from –40 °C to 85 °C.
