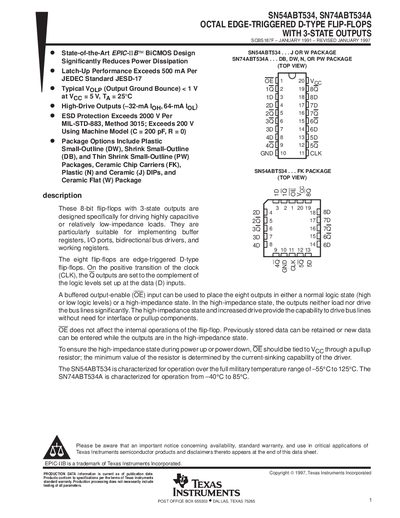

SN54ABT534 and SN74ABT534A are eight-bit edge-triggered D-type flip-flops with 3-state outputs. They feature state-of-the-art EPIC-II B BiCMOS design, significantly reducing power dissipation. They have latch-up performance exceeding 500 mA per JEDEC standard, output ground bounce less than 1 V, high-drive outputs, ESD protection exceeding 2000 V, and various package options.
The SN54ABT534 and SN74ABT534A are octal edge‑triggered D‑type flip‑flops that provide three‑state outputs. They are intended for driving highly capacitive loads, bus lines, and bidirectional I/O ports, with an output‑enable pin that can place the outputs in a high‑impedance state.
The document lists absolute‑maximum ratings, recommended operating conditions, electrical characteristics, timing requirements, switching characteristics, and detailed package information, including thermal impedance and mechanical dimensions. It also includes a package‑option addendum and legal notices.
| High‑level input voltage (VIH) | 2 V |
|---|---|
| Low‑level input voltage (VIL) | 0.8 V |
| High‑level output current (IOH) | 24 mA (SN54ABT534) / –32 mA (SN74ABT534A) |
| Low‑level output current (IOL) | 48 mA (SN54ABT534) / 64 mA (SN74ABT534A) |
| Maximum clock frequency | 125 MHz |
| Storage temperature range | -55 °C to 125 °C (SN54ABT534) / -40 °C to 85 °C (SN74ABT534A) |
Both parts support a maximum clock frequency of 125 MHz.
SN54ABT534 is rated from –55 °C to 125 °C, while SN74ABT534A is rated from –40 °C to 85 °C.
