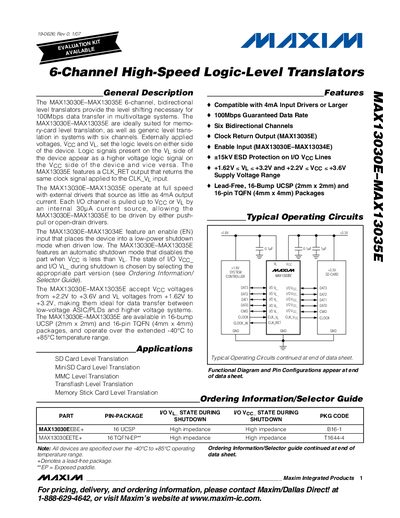

The MAX13030E-MAX13035E 6-channel, bidirectional level translators provide the level shifting necessary for 100Mbps data transfer in multivoltage systems. The MAX13030E-MAX13035E are ideally suited for memory-card level translation, as well as generic level translation in systems with six channels. Externally applied voltages, VCC and VL, set the logic levels on either side of the device. Logic signals present on the VL side of the device appear as a higher voltage logic signal on the VCC side of the device and vice versa. The MAX13035E features a CLK_RET output that returns the same clock signal applied to the CLK_VL input. The MAX13030E-MAX13035E operate at full speed with external drivers that source as little as 4mA output current. Each I/O channel is pulled up to VCC or VL by an internal 30µA current source, allowing the MAX13030E-MAX13035E to be driven by either push-pull or open-drain drivers. The MAX13030E-MAX13034E feature an enable (EN) input that places the device into a low-power shutdown mode when driven low. The MAX13030E-MAX13035E features an automatic shutdown mode that disables the part when VCC is less than VL. The state of I/O VCC_ and I/O VL_ during shutdown is chosen by selecting the appropriate part version (see Ordering Information/Selector Guide). The MAX13030E-MAX13035E accept VCC voltages from +2.2V to +3.6V and VL voltages from +1.62V to +3.2V, making them ideal for data transfer between low-voltage ASIC/PLDs and higher voltage devices.
The MAX13030E‑MAX13035E family provides six bidirectional, high‑speed logic‑level translators for multivoltage systems. They shift voltage levels between a low‑voltage side (VL) and a higher‑voltage side (VCC), enabling reliable 100 Mbps data transfer for memory‑card interfaces and other applications.
Key features include an enable (EN) pin for low‑power shutdown, a clock‑return output on the MAX13035E, +15 kV ESD protection, and operation over a –40 °C to +85 °C temperature range. The devices are offered in 16‑bump UCSP and 16‑pin TQFN packages.
| Supply Voltage Range (VL) | 1.62 V to 3.20 V |
|---|---|
| Supply Voltage Range (VCC) | 2.2 V to 3.6 V |
| Maximum Data Rate | 100 Mbps |
| Number of Channels | 6 bidirectional channels |
| Enable Input (EN) | Shutdown control pin |
| Clock Return Output | CLK_RET on MAX13035E |
| ESD Protection | +15 kV on I/O VCC lines |
| Operating Temperature Range | -40 °C to +85 °C |
The device supports a guaranteed data rate of 100 Mbps.
It provides six bidirectional channels.
Yes, the MAX13035E includes a CLK_RET (clock return) output.
