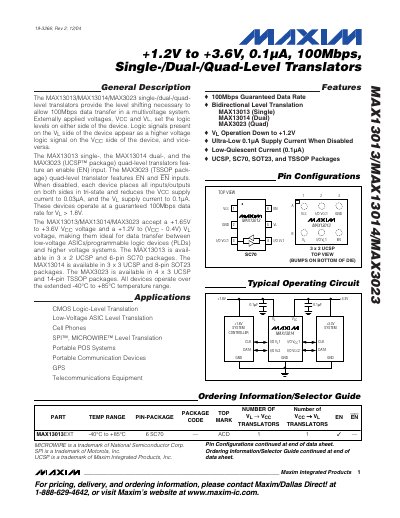

The MAX13013, MAX13014 and MAX3023 are bidirectional level‑translator devices that enable 100 Mbps data transfer across multivoltage systems. They accept VCC from +1.65 V to +3.6 V and VL from +1.2 V to (VCC ‑ 0.4 V), providing guaranteed data rates of up to 100 Mbps when VL > 1.8 V.
The datasheet includes absolute maximum ratings, electrical and timing characteristics, pin descriptions, test circuits, and detailed package information for the SC70, SOT23, UCSP and TSSOP variants. It also outlines enable‑pin behavior and recommended driver requirements.
| Guaranteed Data Rate | 100 Mbps (VL > 1.8 V) |
|---|---|
| VCC Supply Range | +1.65 V to +3.6 V |
| Operating Temperature Range | -40 °C to +85 °C |
The devices guarantee a 100 Mbps data rate when the low‑voltage side (VL) is above 1.8 V.
VCC may be between +1.65 V and +3.6 V, while VL may be between +1.2 V and (VCC ‑ 0.4 V).
The EN pin enables the translator; when pulled low (or high for the MAX3023 TSSOP), all I/Os go into tri‑state mode.
