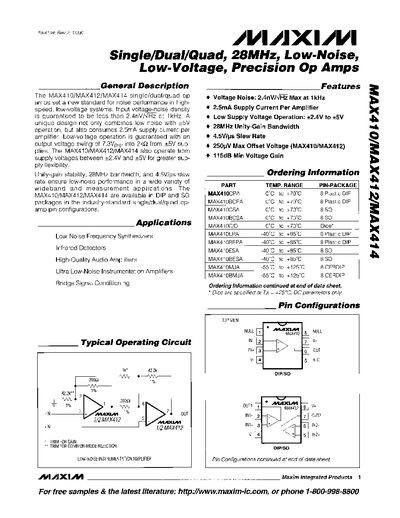

The MAX410, MAX412 and MAX414 are single‑, dual‑ and quad‑package operational amplifiers designed for high‑speed, low‑voltage systems. They offer a very low input voltage‑noise density (≤ 2.4 nV/√Hz at 1 kHz) while operating from a supply range of +2.4 V to +5 V and drawing only 2.5 mA per amplifier.
Key electrical characteristics include a 28 MHz unity‑gain bandwidth, 4.5 V/µs slew rate, 7.3 Vpp output swing into a 2 kΩ load, and robust protection features such as a 35 mA short‑circuit output current limit. The devices are supplied in DIP, SO and CERDIP packages and are suited for low‑noise frequency synthesizers, audio amplifiers, instrumentation, and bridge signal‑conditioning circuits.
| Voltage Noise Density | ≤ 2.4 nV/√Hz at 1 kHz |
|---|---|
| Supply Current per Amplifier | 2.5 mA |
| Supply Voltage Range | +2.4 V to +5 V |
| Unity‑Gain Bandwidth | 28 MHz |
| Slew Rate | 4.5 V/µs |
| Output Voltage Swing | 7.3 Vpp into 2 kΩ |
| Short‑Circuit Output Current | 35 mA |
The voltage noise density is guaranteed to be less than 2.4 nV/√Hz at 1 kHz.
They operate from +2.4 V up to +5 V, providing flexibility for low‑voltage designs.
Each amplifier consumes 2.5 mA of supply current.
The unity‑gain bandwidth is 28 MHz.
