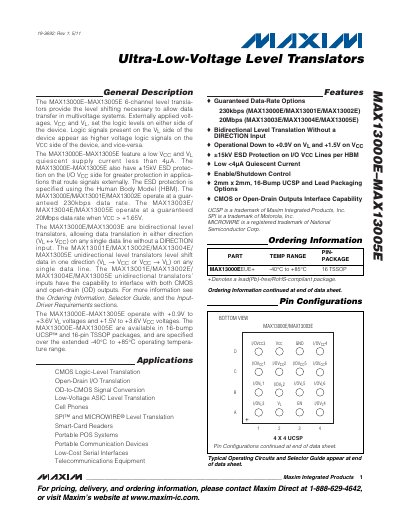

This datasheet describes the characteristics and usage of the MAX13000E-MAX13005E 6-channel level translator, including the working principle, working conditions, pin functions, electrical characteristics, and application examples.
The MAX13000E‑MAX13005E family provides ultra‑low‑voltage, 6‑channel level translation for multivoltage systems. Devices operate with V L from 0.9 V up to VCC and VCC from 1.5 V to 3.6 V, offering bidirectional or unidirectional translation without a direction pin. They feature low quiescent current (<4 µA) and ±15 kV ESD protection on the VCC side.
The series is offered in 16‑bump UCSP and 16‑pin TSSOP packages and is rated for –40 °C to +85 °C operation. Data rates are guaranteed at 230 kbps for MAX13000E‑MAX13002E and 20 Mbps for MAX13003E‑MAX13005E when VCC exceeds 1.65 V. Detailed electrical characteristics, timing diagrams, pin descriptions and ordering information are provided.
| VCC Supply Range | 1.5 V to 3.6 V |
|---|---|
| Quiescent Supply Current (VCC) | < 4 µA (typical 0 µA) |
| Data Rate | 230 kbps (MAX13000E‑MAX13002E) / 20 Mbps (MAX13003E‑MAX13005E) |
| ESD Protection | ±15 kV on I/O VCC lines (HBM) |
| Operating Temperature Range | -40 °C to +85 °C |
| Package Options | 16‑bump UCSP and 16‑pin TSSOP |
The MAX13000E device is guaranteed to operate at 230 kbps.
Yes, it provides ±15 kV ESD protection on the I/O VCC lines.
The quiescent supply current is less than 4 µA, typically 0 µA.
